STEPS 4A &4B
BUILDING A SOUTHERN TUXEDO GP7 by BOB HARPE
STEP 4A) ASSEMBLE THE SHORT HOOD, LONG HOOD, CAB, FIREMAN'S SIDE STEP AND
WALKWAY.  ( NOTE ) THE FOLLOWING STEP IS OPTIONAL!! I SUGGEST THAT THE ABOVE
ASSEMBLY BE GLUED TOGETHER, BUT IF YOU CHOOSE NOT TO, THAT'S FINE. IT WILL MAKE FOR
A STRONGER MODEL IF YOU DO GLUE IT TOGETHER AS A UNIT.  SEE PIC BELOW:

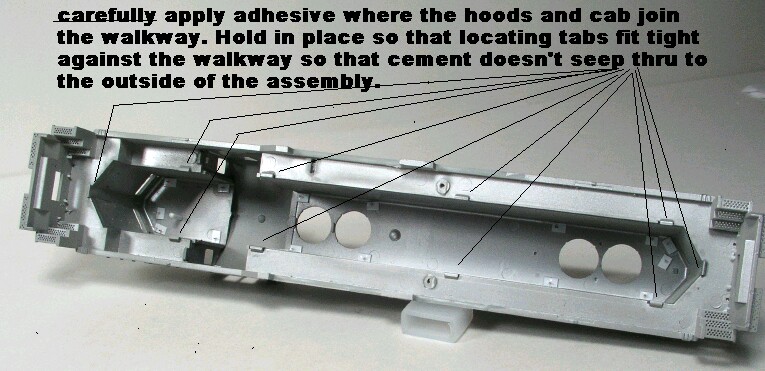

STEP 4A CONT.) CAREFULLY, FROM THE INSIDE OF THE MODEL, GLUE THE CAB, SHORT
HOOD, LONG HOOD AND STEP TO THE WALKWAY. APPLY ADHESIVE EVERYWHERE THESE
PARTS MEET AND BE SURE TO HOLD ALL PARTS TOGETHER AS YOU GO SO AS NOT TO
ALLOW ANY ADHESIVE TO RUN TO THE OUTSIDE OF THE SHELL. YOU MAY FIND IT BEST
TO SPOT GLUE THESE PARTS TOGETHER AND THEN ADD GLUE TO THE ENTIRE AREA. YOUR
CHOICE. NOW ALLOW TO DRY.

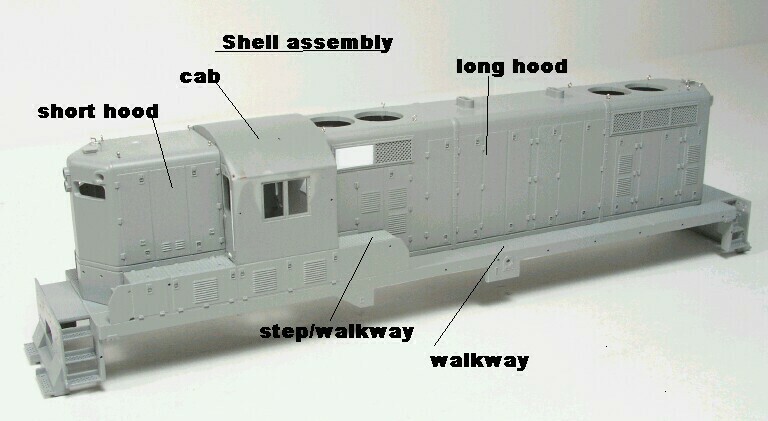

STEP 4B  HOW THE MODEL WILL APPEAR AFTER ALL THE
COMPONENTS HAVE BEEN GLUED TOGETHER.  SEE PIC BELOW:


© Bob Harpe 2003
