STEPS 9A & 9B
BUILDING A SOUTHERN TUXEDO GP7 by BOB HARPE
STEP 9A) SEE PIC BELOW:
IF YOU CHOOSE TO USE THE DA PART 2304, YOU MAY USE THE LIFT RINGS TO
SUPPORT THE DEFLECTORS OR YOU MAY DO AS I DO AND BEND THE TWO TABS OVER AND
GLUE THE DEFLECTORS DIRECTLY TO THE CAB SIDE. YOUR CHOICE.
CAUTION: THESE PARTS ARE VERY FRAGILE SO HANDLE ACCORDINGLY.

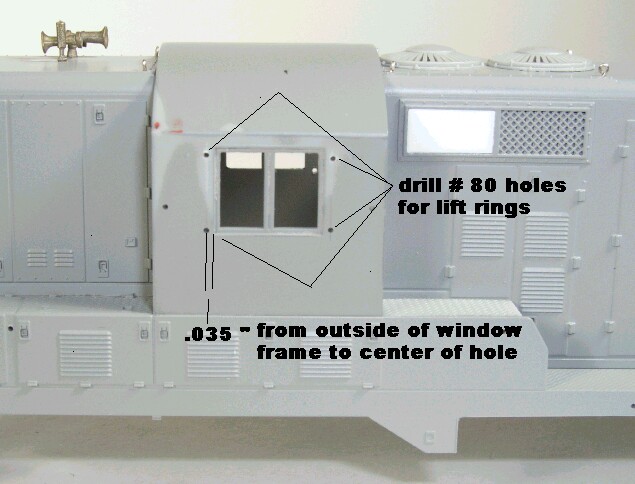

MEASURE .035" FROM THE WINDOW EDGES AND MARK LIGHTLY. LAY THE WIND DEFLECTOR
ON THE CAB SIDE AND MARK FOR THE HOLES SHOWN IN THE SCAN 9A. DO NOT GLUE IN
PLACE AT THIS TIME.

STEP 9B) SEE PIC BELOW:

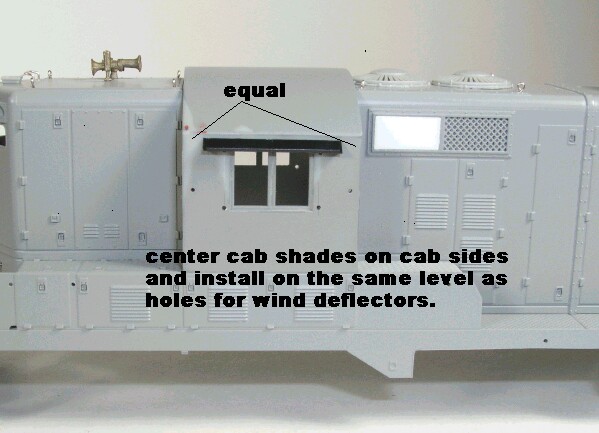

INSTALL THE SR CAB SHADES. TAKE YOUR TIME AND
MAKE SURE THEY ARE STRAIGHT.


BOB HARPE

© Bob Harpe 2003
